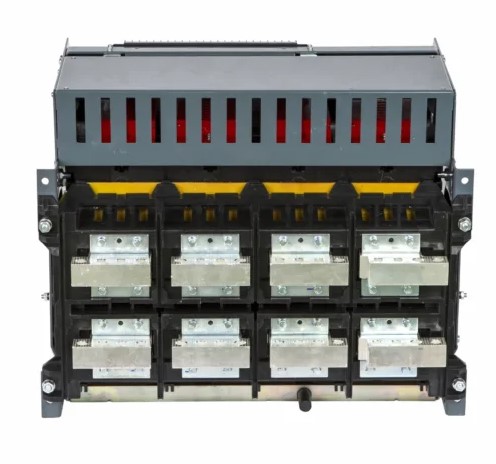

Air Circuit Breaker

Note: Customized products beyond those standard services condition are available, please check with sales before ordering.

superior performance: Stable and reliable performance, superior performance, can be applied in a variety of environments.
small size and light: Small size, easy to carry and store, convenient to use and with good performance.
strong and durable: Each part of the circuit breaker is made by strong and durable material for guaranteed quality.
working conditions: The circuit breaker wiring has good functions and can be used to automatically cut off in cars, boats, fishing, etc
compatibility: Stable performance, quick response, high efficiency and reliable operation.

Highest voltage for material: 15kV
KVA	Voltage			Vector group	Losses		No-load current (%)	Impendance voltage (%)	Weight (KGS)		Overall dimension(mm)
KVA	H.V.(KV)	Tapping range	L.V.(V)	Vector group	No-load (W)	Load (W)	No-load current (%)	Impendance voltage (%)	Oil	Total	L	W	H
25	15	±5% or ±2*2.5%	400	Dyn11 or Yyn0	82	508	2.10	4	74	305	765	500	850
50					90	750	2.0		75	335	815	600	1005
100					145	1250	1.6		105	475	815	680	1000
160					210	1700	1.4		140	680	1035	640	1020
200					335	2993	1.4		140	710	1060	675	1120
250					300	2350	1.2		165	830	1170	750	1135
315					360	2800	1.1		190	985	1140	695	1275
400					430	3250	1.0		205	1120	1285	835	1215
500					510	3900	1.0		240	1300	1235	755	1355
630					560	5800	0.9	4.5	280	1590	1235	755	1355
800					650	6000	0.8		305	1790	1545	1005	1395
1000					770	7600	0.7		345	2055	1735	1235	1455
1250					950-	9500	0.6		390	2480	1815	1285	1475
1600					950	9500	0.6		490	3130	1840	1300	1730
2500					3200	22500	0.4		765	4250	1890	1370	1790

Note: The above parameters are for reference only. For any other requirement, please contact us.
